SMD chip resistor featuring 20 kOhm resistance with a 1% tolerance. This general-purpose thick film resistor offers a 63 mW power dissipation and a 50V voltage rating. Housed in a compact 0402 [1005 Metric] case, it operates across a wide temperature range from -55°C to +155°C and is moisture resistant. The component is RoHS compliant and utilizes SMD/SMT termination for surface mount applications.
Package0402
Resistance20kR
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0402FR-0720KL technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Depth | 0.5mm |
| Features | Moisture Resistant |
| Height | 0.016inch |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 20kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Size Code | 0402 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0402FR-0720KL Datasheet
Download the complete datasheet for Yageo RC0402FR-0720KL to view detailed technical specifications.
No datasheet is available for this part.

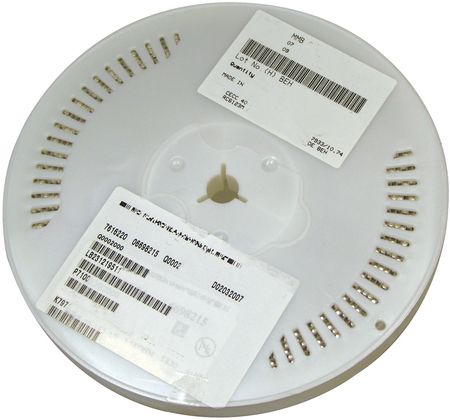

Product Images
