51 Ohm 1% tolerance thick film chip resistor in a 0402 (1005 metric) SMD/SMT package. Features a 1/16W (63mW) power rating and 50V DC rated voltage, operating from -55°C to +155°C. This moisture-resistant, lead-free component is supplied on tape and reel.
Package0402
Resistance51R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0402FR-0751RL technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Depth | 0.5mm |
| Features | Moisture Resistant |
| Height | 0.016inch |
| Lead Free | Lead Free |
| Length | 0.039inch |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |

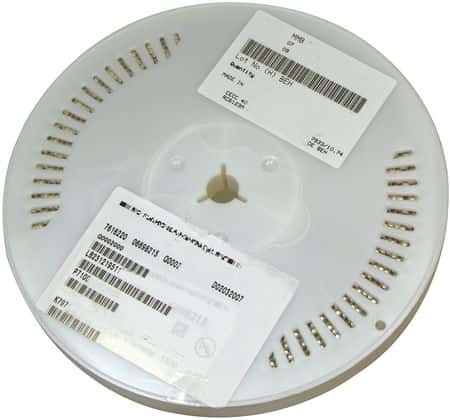

| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 51R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Size Code | 0402 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0402FR-0751RL Datasheet
Download the complete datasheet for Yageo RC0402FR-0751RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

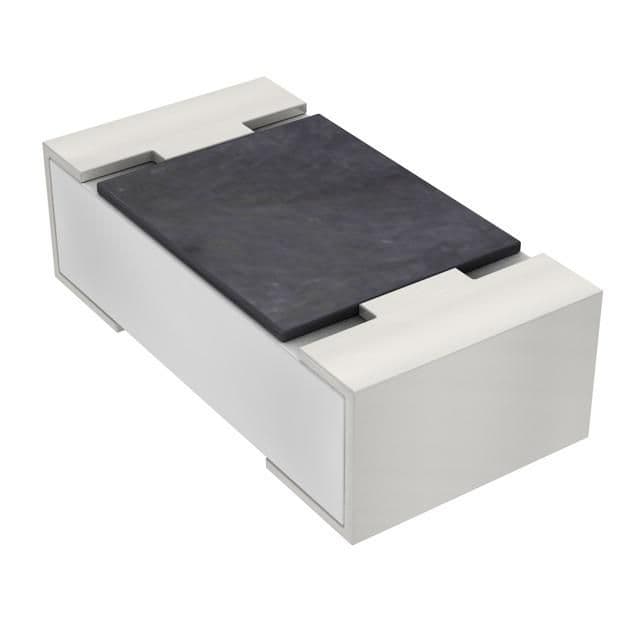

Product Images
