SMD chip resistor featuring 100 Ohm resistance with a 1% tolerance. This general-purpose, thick-film resistor offers a 100mW power dissipation and operates within a temperature range of -55°C to 155°C. Packaged in a 0603 [1608 Metric] case, it measures 1.6mm in length, 0.8mm in width, and 0.45mm in height, with a depth of 0.8mm. The component is RoHS compliant, lead-free, and moisture-resistant, designed for surface-mount technology with two terminations and a 50V voltage rating.
Package0603
Resistance100R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603FR-07100RL technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Depth | 0.8mm |
| Features | Moisture Resistant |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 100R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Size Code | 0603 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0603FR-07100RL Datasheet
Download the complete datasheet for Yageo RC0603FR-07100RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

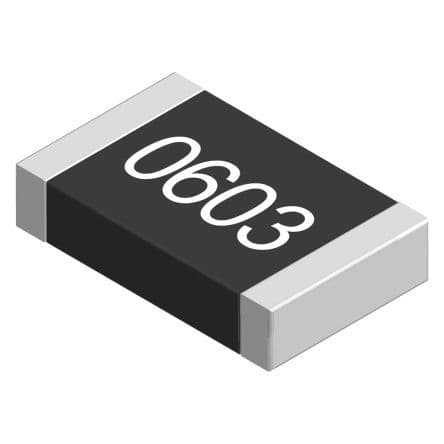

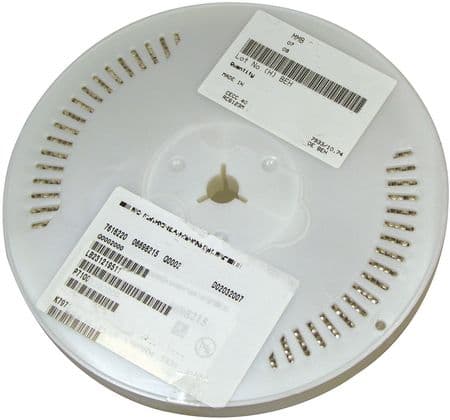

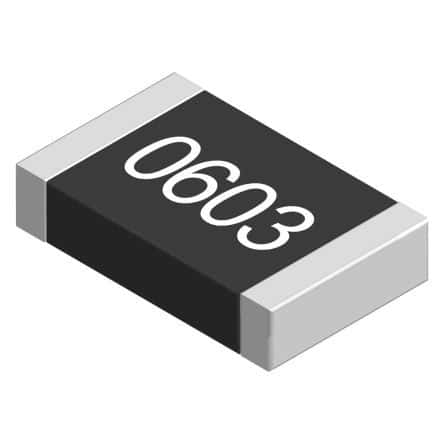

Product Images
