SMD chip resistor featuring 470 Ohm resistance with a 1% tolerance. This thick film resistor offers a 100mW power dissipation and operates across a wide temperature range from -55°C to 155°C. Housed in a compact 0603 (1608 metric) case, it boasts gold-plated brass contacts and is designed for surface mount technology. The component is RoHS compliant and moisture resistant, with a maximum working voltage of 75V.
Package0603
Resistance470R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603FR-07470RL technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Material | Brass |
| Contact Plating | Gold |
| Depth | 0.8mm |
| Features | Moisture Resistant |
| Height | 0.022inch |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 0.063inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 470R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| Width | 0.031inch |
| Working Voltage | 75V |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0603FR-07470RL Datasheet
Download the complete datasheet for Yageo RC0603FR-07470RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

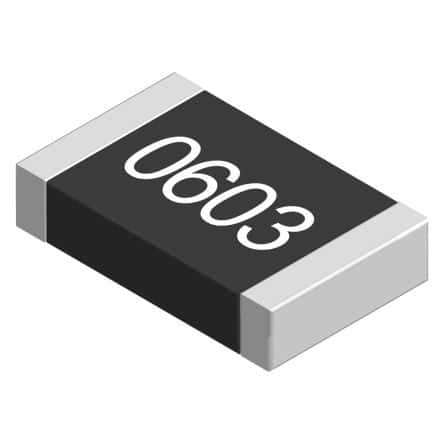

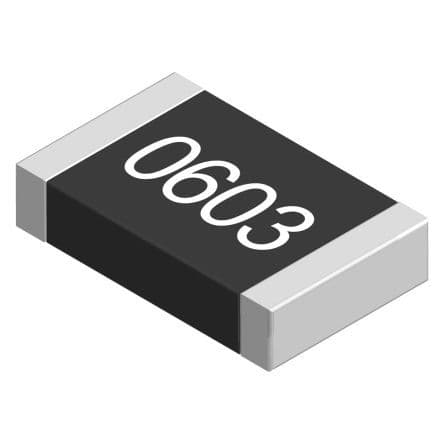

Product Images
