1.2kR 5% tolerance chip resistor, 1/10W (100mW) power dissipation, 50V voltage rating, and thick film resistor type. Features a 0603 (1608 metric) SMD/SMT case code, operating from -55°C to 155°C. This moisture-resistant, lead-free component is supplied in tape and reel packaging.
Package0603
Resistance1.2kR
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603JR-071K2L technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Features
Moisture Resistant
Height
0.022inch
Lead Free
Lead Free
Length
0.063inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
1.2kR
Resistance Tolerance
5%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
RC
Size Code
0603
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Yageo RC0603JR-071K2L Datasheet
Download the complete datasheet for Yageo RC0603JR-071K2L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

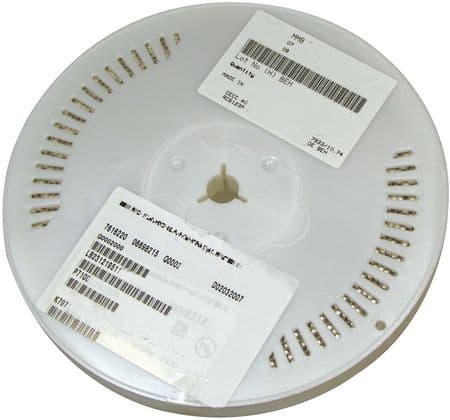

Product Images
