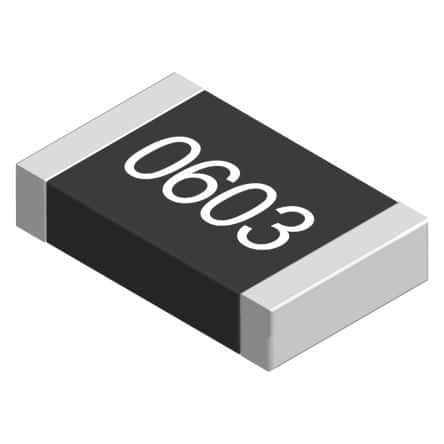

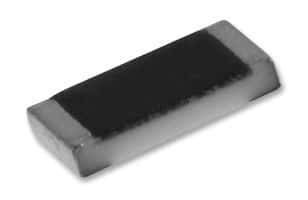

SMD chip resistor featuring 1 MOhm resistance with a 5% tolerance. This general-purpose, thick-film resistor offers a 100mW power dissipation and a 50V voltage rating. Constructed in a 0603 (1608 Metric) case code, it measures 1.6mm in length, 0.8mm in width, and 0.45mm in height, with a depth of 0.8mm. Operating across a temperature range of -55°C to 155°C, it is moisture resistant and RoHS compliant.
Package0603
Resistance1MR
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603JR-071ML technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Contact Plating | Tin, Matte |
| Depth | 0.8mm |
| Features | Moisture Resistant |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Military Standard | Not |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 1MR |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Size Code | 0603 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0603JR-071ML Datasheet
Download the complete datasheet for Yageo RC0603JR-071ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
