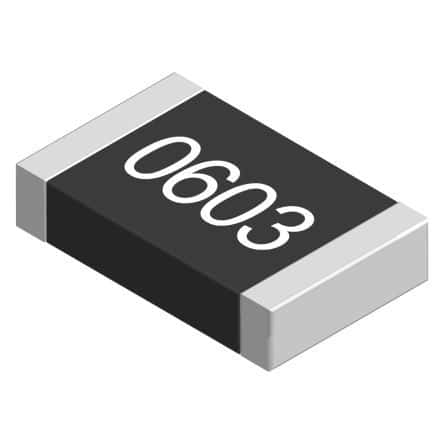

SMD chip resistor featuring 22 Ohm resistance with a 5% tolerance. This general-purpose, thick-film resistor is housed in a 0603 (1608 metric) case code, measuring 1.6mm in length and 0.8mm in width and depth. It offers a maximum power dissipation of 100mW and operates across a temperature range of -55°C to 155°C. Designed for surface mount technology (SMT), this component is moisture resistant, lead-free, and RoHS compliant, with a voltage rating of 50V.
Package0603
Resistance22R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0603JR-0722RL technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Depth | 0.8mm |
| Features | Moisture Resistant |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 22R |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Size Code | 0603 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0603JR-0722RL Datasheet
Download the complete datasheet for Yageo RC0603JR-0722RL to view detailed technical specifications.
No datasheet is available for this part.
