This 47 ohm 5% tolerance fixed resistor features a maximum power dissipation of 10 watts and is designed for use in high-temperature applications up to 155°C. The resistor is packaged in bulk quantities of 500 units and is compliant with RoHS regulations. It is available in a through-hole axial package with a length of 1.89 inches.
PackageAxial
Resistance47R
Quick Jump:
Technical Specifications
Yageo SQP10AJB-47R technical specifications.
General
| Package/Case | Axial |
| Features | Moisture Resistant |
| Lead Free | Lead Free |
| Length | 1.89inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 10W |
| Number of Terminations | 2 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Resistance | 47R |
| RoHS Compliant | Yes |
| Series | SQP |
| Tolerance | 5% |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Yageo SQP10AJB-47R Datasheet
Download the complete datasheet for Yageo SQP10AJB-47R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

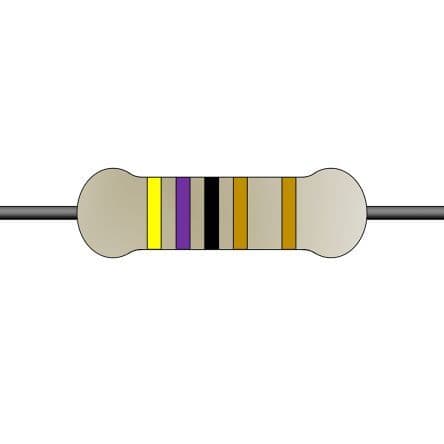

Product Images
