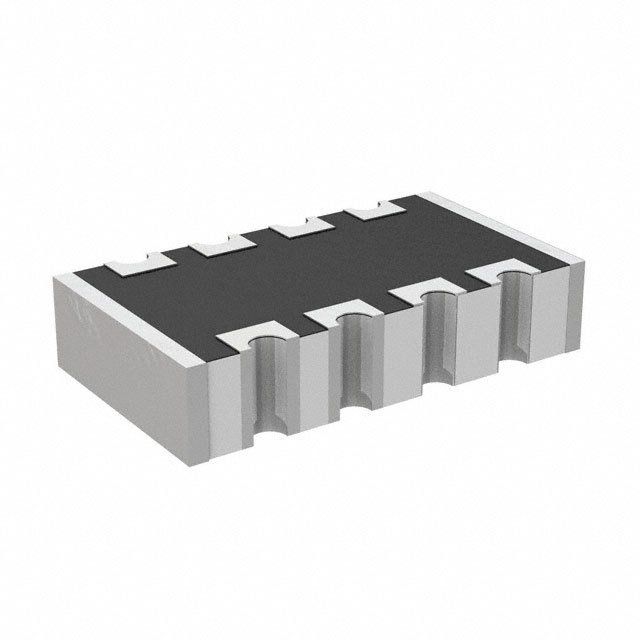

Surface mount resistor network featuring 4 isolated elements, each with a 100k Ohm resistance and 5% tolerance. This 8-contact component is housed in a 1206 (3216 Metric) case code, measuring 0.126 inches in length and 0.063 inches in width, with a height of 0.028 inches. It operates across a temperature range of -55°C to 155°C, with a maximum power dissipation of 63mW and 62.5mW per element, and a voltage rating of 50V. The component is RoHS compliant and lead-free.
Package0603
Resistance100kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo TC164-JR-07100KL technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
0603
Circuit Type
Isolated
Height
0.028inch
Lead Free
Lead Free
Length
0.126inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Circuits
4
Number of Contacts
8
Number of Elements
4
Number of Resistors
4
Package Quantity
1
Packaging
Cut Tape
Power Dissipation
63mW
Power Per Element
62.5mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
100kR
Resistance Tolerance
5%
RoHS Compliant
Yes
Series
TC164
Tolerance
5%
Voltage Rating
50V
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Yageo TC164-JR-07100KL Datasheet
Download the complete datasheet for Yageo TC164-JR-07100KL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
