Surface mount resistor network featuring 4 isolated elements, each with 270 Ohms resistance and 1% tolerance. This thick film component operates within a -55°C to +155°C temperature range, offering 62.5mW power per element and a 50V voltage rating. Packaged in a 1206 (3216 metric) SMD/SMT case, it measures 0.126" L x 0.063" W x 0.028" H and is supplied on tape and reel.
PackageSMD/SMT
Resistance270R
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo YC164-FR-07270RL technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | SMD/SMT |
| Circuit Type | Isolated |
| Height | 0.028inch |
| Length | 0.126inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Packaging | Tape and Reel |
| Power Per Element | 62.5mW |
| Reach SVHC Compliant | Unknown |
| Resistance | 270R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | YC164 |
| Technology | THICK FILM |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo YC164-FR-07270RL Datasheet
Download the complete datasheet for Yageo YC164-FR-07270RL to view detailed technical specifications.
No datasheet is available for this part.

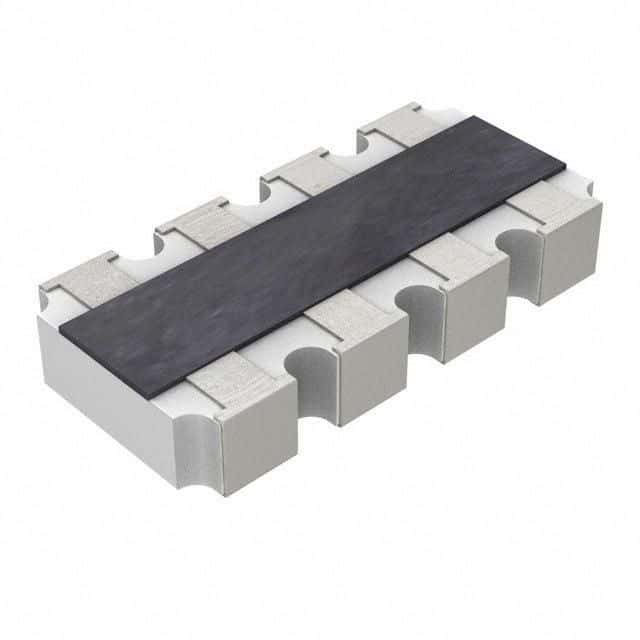

Product Images
