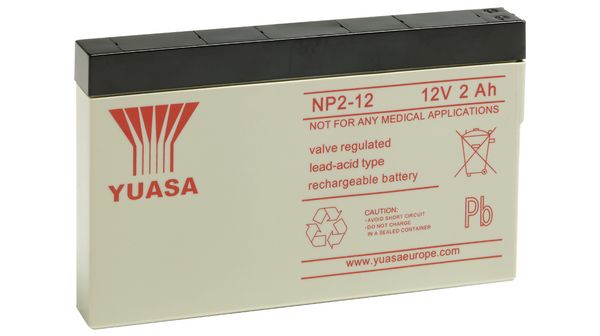

The Yuasa NP2-12 is a 12V lead acid battery with a capacity of 2Ah. It measures 89mm in height, 150mm in length, and 20mm in width, and weighs 0.7kg. The battery operates within a temperature range of -20°C to 60°C. It has a tab termination and is not Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Yuasa NP2-12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Yuasa NP2-12 technical specifications.
| Capacity | 2ah |
| Chemistry/Technology | Lead Acid |
| Height | 89mm |
| Length | 150mm |
| Life (Hours) | 3Hour |
| Material | Lead, Glass fibre |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Reach SVHC Compliant | No |
| Termination | Tab |
| DC Rated Voltage | 12V |
| Weight | 0.7kg |
| Width | 20mm |
| RoHS | Compliant |
Download the complete datasheet for Yuasa NP2-12 to view detailed technical specifications.
