This positive voltage regulator IC provides a fixed 12V output with a maximum output current of 1.5A. Designed for through-hole mounting in a TO-220-3 package, it operates with a minimum input voltage of 14V and a maximum of 35V, featuring a 2V dropout voltage. The device offers a Power Supply Rejection Ratio (PSRR) of 55dB and a quiescent current of 8mA, with an operating temperature range of 0°C to 125°C. This lead-free, RoHS-compliant component is supplied in rail/tube packaging.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Stmicroelectronics L7812CV-DG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Stmicroelectronics L7812CV-DG technical specifications.
General
| Package/Case | TO-220-3 |
| Dropout Voltage | 2V |
| Height | 15.75mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 14V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Min Output Voltage | 12V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 55dB |
| Quiescent Current | 8mA |
| RoHS Compliant | Yes |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7812CV-DG Datasheet
Download the complete datasheet for Stmicroelectronics L7812CV-DG to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

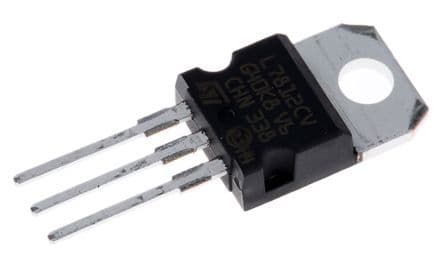

Product Images
