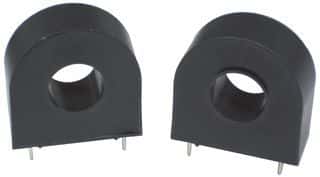

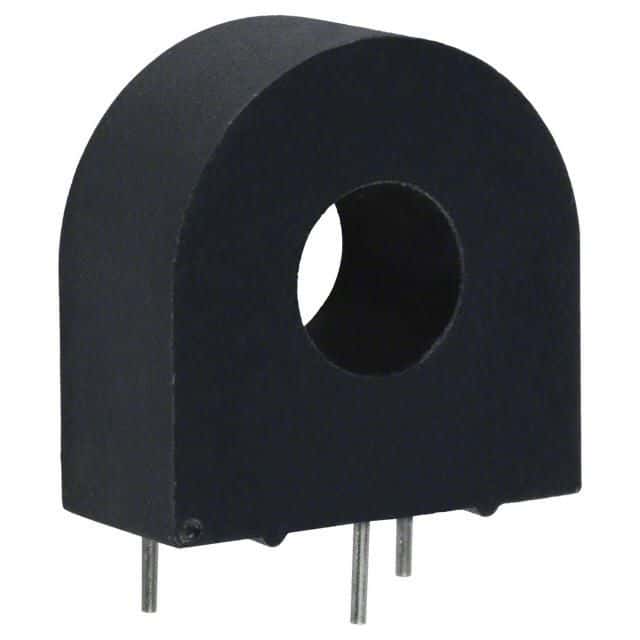

Through-hole current sense transformer with a 15A input and primary current rating. Features a 1:1 turns ratio and 41.8 Ohms DC resistance. Component height is 23.8mm, terminated with PC pins, and offered in bulk packaging. Lead-free construction ensures compliance with environmental standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Acme Electric AC1015 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| DC Resistance (DCR) | 41.8R |
| Height | 23.8mm |
| Input Current | 15A |
| Lead Free | Lead Free |
| Mount | Through Hole |
| Packaging | Bulk |
| Primary Current | 15A |
| Reach SVHC Compliant | Unknown |
| Series | AC |
| Termination | PC Pin |
| Turns Ratio | 1:1 |
| Weight | 0.036lb |
| RoHS | Compliant |
