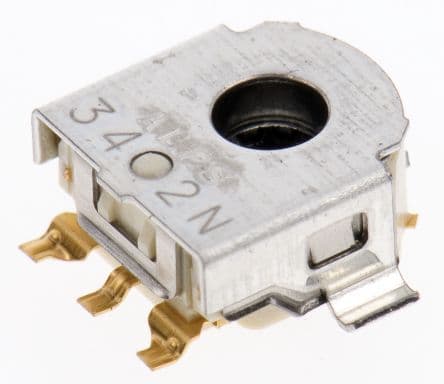

This 2-channel quadrature encoder is designed for surface mount applications and operates within a temperature range of -30°C to 85°C. It is rated for a maximum supply voltage of 5V DC and has a DC rated voltage of 5.5V. The encoder is packaged in tape and reel format and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alps Electric EC05E1220401 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage (DC) | 5V |
| Mount | Surface Mount, Brackets |
| Number of Channels | 2 |
| Output Type | Quadrature |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| DC Rated Voltage | 5.5V |
| RoHS | Compliant |
