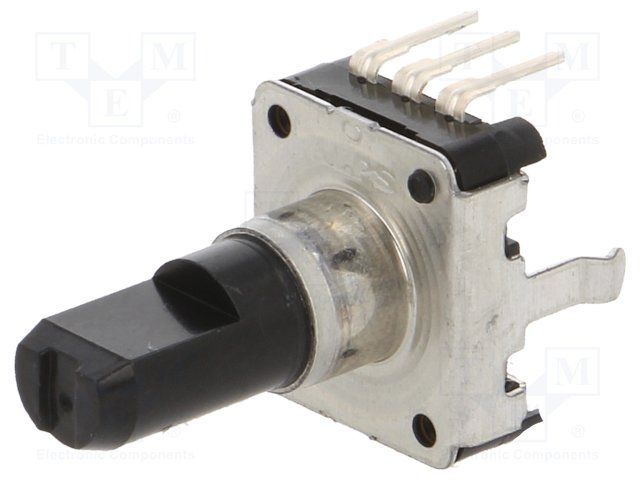

This 24-position quadrature encoder from Alps Electric features two channels and a through hole mount. It operates within a temperature range of -10°C to 70°C and is supplied with a maximum voltage of 5V. The encoder is compliant with RoHS regulations and is packaged in a tray. It is not Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alps Electric EC12E24204A8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (DC) | 5V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Positions | 24 |
| Output Type | Quadrature |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| RoHS | Compliant |
