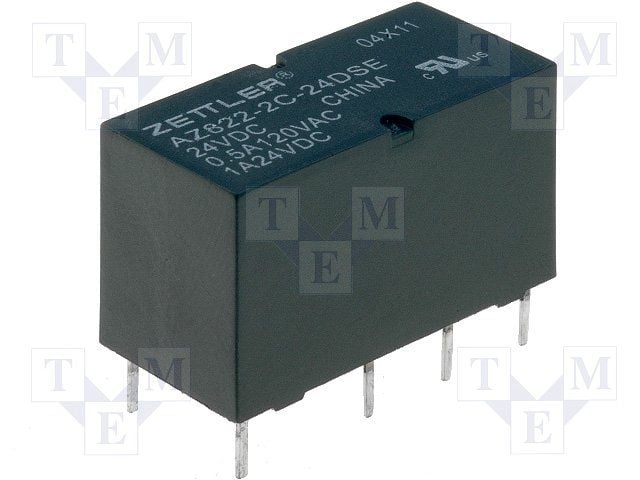

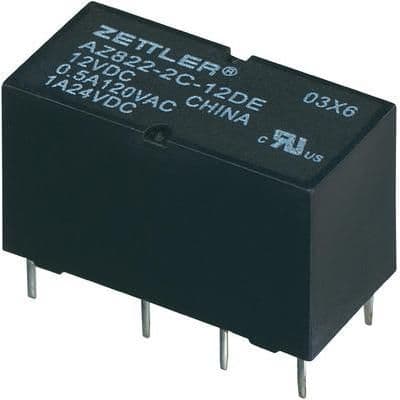

General purpose electromechanical relay featuring 2 Form C (DPDT) contacts, rated for 2A at 250VAC/220VDC. Coil operates at 24VDC with 8.33mA current and 192mW power consumption, boasting a 2.88kΩ resistance. Contact material includes gold and silver for reliable switching. Through-hole mounting with PC pin termination, this RoHS compliant component offers a 5ms operate time and operates within a -55°C to 90°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the American Zettler AZ822-2C-24DSE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Package/Case | DIP |
| Coil Current | 8.33mA |
| Coil Resistance | 2.88kR |
| Coil Voltage (DC) | 24V |
| Contact Material | Gold, Silver |
| Contact Type | 2 change-overs |
| Current Rating | 2A |
| Height | 12mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | PCB, Through Hole |
| Operate Time | 5ms |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| Weight | 4.5g |
| Width | 9.8mm |
| RoHS | Compliant |
