DPDT polarized signal relay featuring a 5VDC coil with 178 Ohm resistance and 28.08mA coil current. Offers 1A contact rating with Gold, Silver contact material, suitable for PCB through-hole mounting. This relay operates within a -40°C to 70°C temperature range, with AC voltage rating of 250V and DC voltage rating of 220V. The compact DIP package measures 14x9x5mm and is RoHS compliant.
PackageDIP
Current Rating1A
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
American Zettler AZ850-5 technical specifications.
General
| Approvals | UL |
| Package/Case | DIP |
| Coil Current | 28.08mA |
| Coil Resistance | 178R |
| Coil Voltage (DC) | 5V |
| Contact Material | Gold, Silver |
| Contact Type | 2 change-overs |
| Current Rating | 1A |
| Height | 5mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | PCB, Through Hole |
| Operate Time | 2ms |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| Weight | 1.5g |
| Width | 9mm |
Compliance
| RoHS | Compliant |
Datasheet
American Zettler AZ850-5 Datasheet
Download the complete datasheet for American Zettler AZ850-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

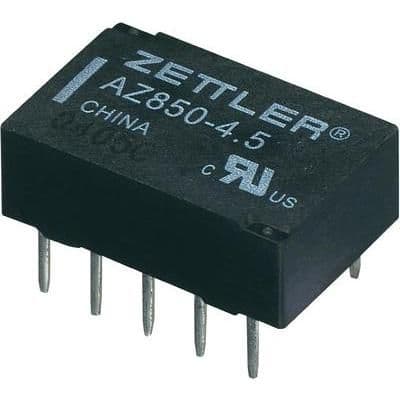

Product Images
