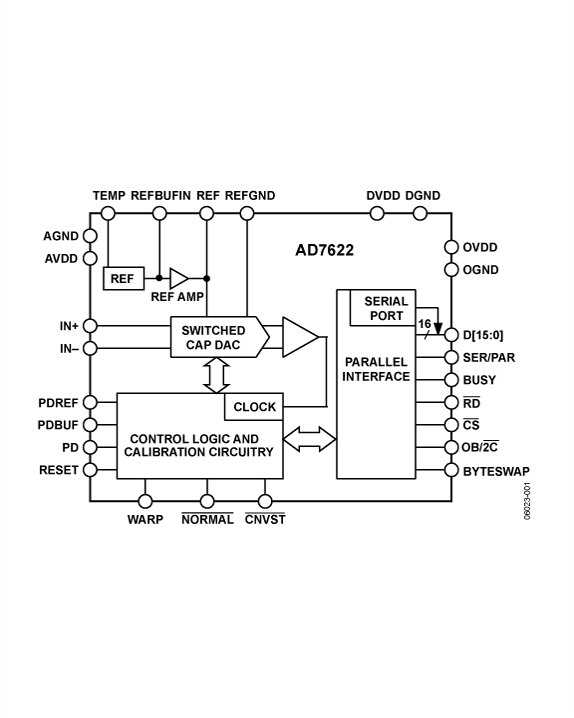

A 16-bit charge redistribution SAR analog-to-digital converter provides fully differential conversion at up to 2 MSPS in wideband warp and warp modes. The converter operates from a single 2.5 V analog and digital core supply with a 2.3 V to 3.6 V output interface supply. It includes an internal conversion clock, 2.048 V reference and buffer, error correction circuitry, and serial or parallel digital interface ports. Performance includes ±1.5 LSB maximum INL, 92.5 dB typical dynamic range, and −115 dB typical THD at a 20 kHz input with a 2.5 V reference. Pb-free 48-lead LQFP and LFCSP packages are specified for −40°C to +85°C operation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD7622 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Resolution | 16bit |
| ADC architecture | Charge redistribution SAR |
| Input configuration | Fully differential |
| Throughput rate, wideband warp/warp modes | 2 maxMSPS |
| Throughput rate, normal mode | 1.5 maxMSPS |
| Integral nonlinearity | ±0.5 typ, ±1.5 maxLSB |
| No missing codes | 16bit |
| Dynamic range | 92.5 typdB |
| Signal-to-noise ratio | 92 typ at 20 kHz, VREF = 2.5 VdB |
| SINAD | 91 min, 92 typ at 20 kHz, VREF = 2.5 VdB |
| Total harmonic distortion | -115 typ at 20 kHz, VREF = 2.5 VdB |
| Spurious-free dynamic range | 117 typ at 20 kHz, VREF = 2.5 VdB |
| Internal reference voltage | 2.048 typV |
| Internal reference drift | ±8 typppm/°C |
| Differential input range | ±VREF, VREF up to 2.5V |
| Analog supply voltage AVDD | 2.37 to 2.63, 2.5 typV |
| Digital core supply voltage DVDD | 2.37 to 2.63, 2.5 typV |
| Output interface supply voltage OVDD | 2.30 to 3.6V |
| Digital interface | Parallel 16-bit or 8-bit bus; serial SPI/QSPI/MICROWIRE/DSP compatible |
| Power dissipation with internal reference | 70 typ, 85 max at 2 MSPSmW |
| Power-down dissipation | 2µW |
| Operating temperature range | -40 to +85°C |
| Pb-free | Yes |
Download the complete datasheet for Analog Devices AD7622 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Analog Devices AD7622
Evaluation board for Analog Devices PulSAR 14-bit, 16-bit, and 18-bit ADCs, featuring analog signal conditioning, on-board references, and parallel/serial interfaces.
