Precision triaxial inclinometer and accelerometer with SPI interface. Features a 16-bit resolution and a -3dB bandwidth of 50Hz across X, Y, and Z axes. Operates from a 3V to 3.6V supply with a typical operating current of 18mA. Module package, suitable for surface mount or screw mounting, with dimensions of 24mm length, 15.2mm width, and 15.2mm height. Operating temperature range from -40°C to 85°C.
PackageModule
Current18uA
Voltage Rating3.6V
MountingSurface Mount, Screw
Quick Jump:
Technical Specifications
Analog Devices ADIS16210CMLZ technical specifications.
General
| -3db Bandwidth | 50Hz |
| Axis | X, Y, Z |
| Bandwidth | 50Hz |
| Package/Case | Module |
| Height | 15.2mm |
| Interface | SPI |
| Lead Free | Contains Lead |
| Length | 24mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount, Screw |
| Operating Supply Current | 18mA |
| Output Type | SPI |
| Package Quantity | 10 |
| Packaging | Box |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Series | iMEMS®, iSensor™ |
| Supply Current | 18uA |
| Voltage Rating | 3.6V |
| Width | 15.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADIS16210CMLZ Datasheet
Download the complete datasheet for Analog Devices ADIS16210CMLZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

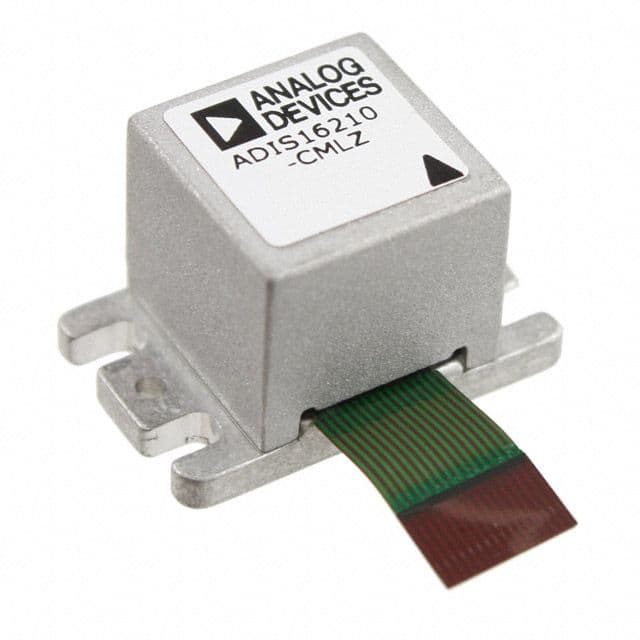

Product Images
