Frequency700MHz
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADL5201ACPZ-R7 technical specifications.
General
| -3db Bandwidth | 700MHz |
| Bandwidth | 700MHz |
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Frequency | 700MHz |
| Gain | 20dB |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Noise Figure | 7.5dB |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Operating Frequency | 700 MHz |
| Operating Supply Current | 110mA |
| Operating Supply Voltage | 5V |
| P1dB | 20dBm |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Test Frequency | 700MHz |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADL5201ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADL5201ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

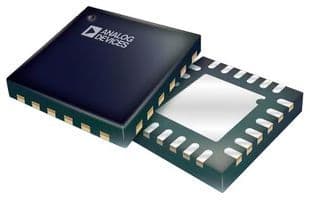

Product Images
