The LT3032EDE-15#TRPBF is a dual linear voltage regulator from Analog Devices. It has a maximum output voltage of 15V and can supply up to 150mA of current. The device operates over a wide input voltage range of 2.3V to 20V and can handle temperatures up to 125°C. The LT3032EDE-15#TRPBF is available in a DFN package and is RoHS compliant.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3032EDE-15#TRPBF technical specifications.
General
| Package/Case | DFN |
| Dropout Voltage | 300mV |
| Min Current Limit | 170mA |
| Max Input Voltage | 20V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 15V |
| Min Output Voltage | 15V |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Operating Supply Current | 25uA |
| Output Current | 150mA |
| Output Voltage | 15V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3032EDE-15#TRPBF Datasheet
Download the complete datasheet for Analog Devices LT3032EDE-15#TRPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

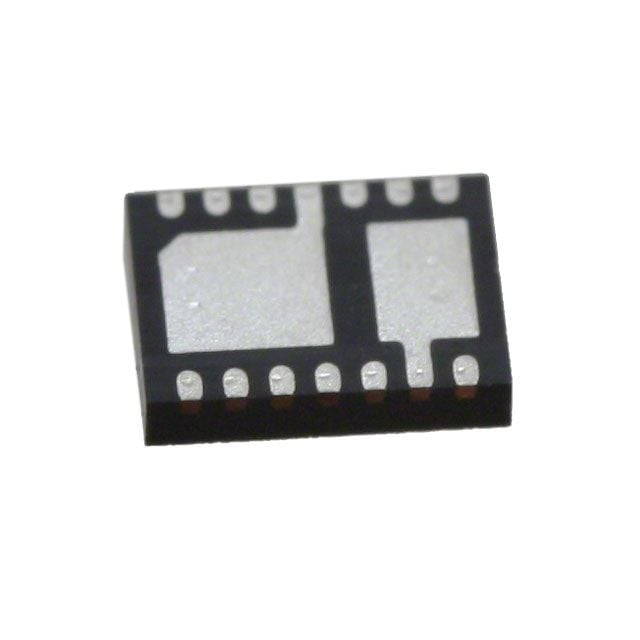

Product Images
