The LT3684EDD#PBF is a DC/DC controller with a maximum input voltage of 34V and a minimum input voltage of 3.6V. It operates within a temperature range of -40°C to 85°C and has a maximum output current of 2A. The device is available in a DFN package with dimensions of 0.7mm height, 3mm length, and 3mm width. It is RoHS compliant and not radiation hardened.
PackageDFN
Quick Jump:
Technical Specifications
Analog Devices LT3684EDD#PBF technical specifications.
General
| Package/Case | DFN |
| Height | 0.7mm |
| Length | 3mm |
| Max Input Voltage | 34V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 20V |
| Min Output Voltage | 1.265V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 20V |
| Package Quantity | 121 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices LT3684EDD#PBF Datasheet
Download the complete datasheet for Analog Devices LT3684EDD#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

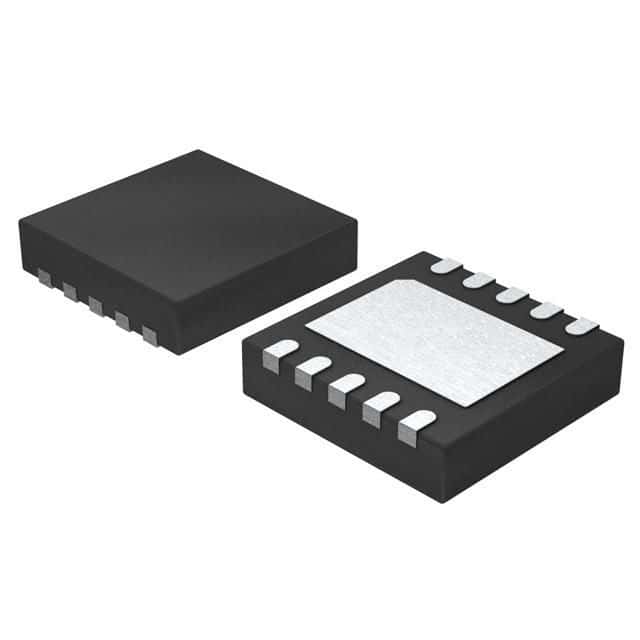

Product Images
