Dual synchronous buck regulator IC with adjustable output voltage from 600mV to 5.5V. Delivers up to 3A per output, supporting a wide input voltage range of 2.25V to 5.5V. Features a maximum operating temperature of 150°C and a minimum of -55°C. Packaged in a 24-pin QFN, this RoHS compliant component is designed for efficient power management.
Quick Jump:
Technical Specifications
Analog Devices LTC3615EUF-1#PBF technical specifications.
General
Current - Output 1
3A
Current - Output 2
3A
Max Input Voltage
5.5V
Min Input Voltage
2.25V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Voltage
5.5V
Min Output Voltage
600mV
Number of Outputs
2
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Package Quantity
91
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Voltage - Output 1
5.5V
Voltage - Output 2
5.5V
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTC3615EUF-1#PBF Datasheet
Download the complete datasheet for Analog Devices LTC3615EUF-1#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

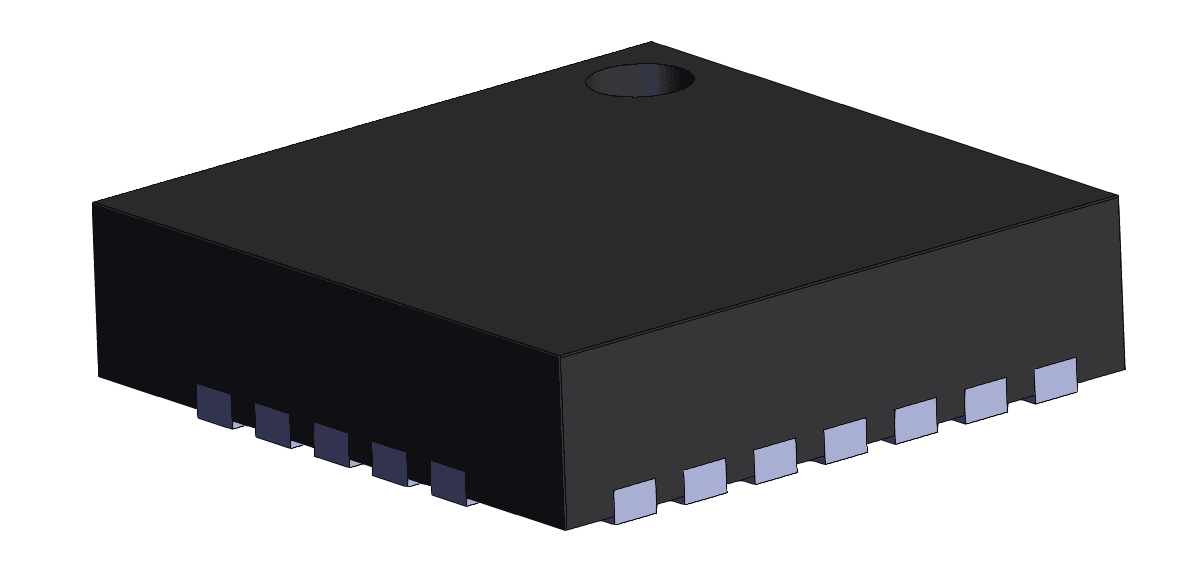

Product Images
