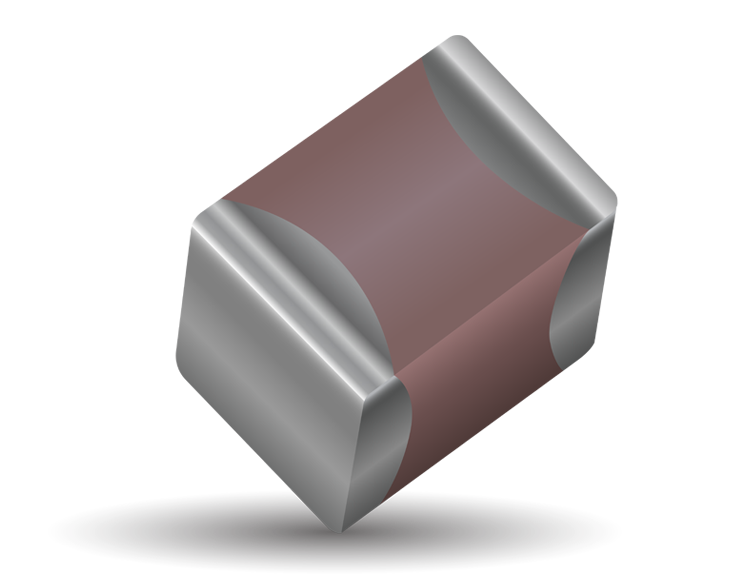

Class II ceramic chip capacitors use an X5R dielectric for higher-capacitance surface-mount applications. The KGM series covers a 4 V to 100 V voltage range and capacitance values from 100 pF to 100 µF. The dielectric operates from -55 °C to +85 °C and provides high volumetric efficiency for decoupling and filtering in space-constrained assemblies.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the AVX X5R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Dielectric class | Class II |
| Dielectric | X5R |
| Product series | KGM Series |
| Mounting type | Surface Mount |
| Operating temperature minimum | -55°C |
| Operating temperature maximum | +85°C |
| Voltage range minimum | 4V |
| Voltage range maximum | 100V |
| Capacitance range minimum | 100pF |
| Capacitance range maximum | 100µF |
| Applications | Decoupling and filtering |
Download the complete datasheet for AVX X5R to view detailed technical specifications.
