The VC10/1/24 is a single-output linear voltage regulator with a maximum operating temperature of 40°C. It is designed for through-hole mounting and has a depth of 34.6mm, length of 51mm, and width of 43mm. The device operates within a frequency range of 50Hz to 60Hz.
Frequency60Hz
MountingThrough Hole
Quick Jump:
Technical Specifications
Block VC10/1/24 technical specifications.
General
| Depth | 34.6mm |
| Length | 51mm |
| Max Frequency | 60Hz |
| Min Frequency | 50Hz |
| Max Operating Temperature | 40°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Weight | 0.28kg |
| Width | 43mm |
Compliance
| RoHS | Compliant |
Datasheet
Block VC10/1/24 Datasheet
Download the complete datasheet for Block VC10/1/24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

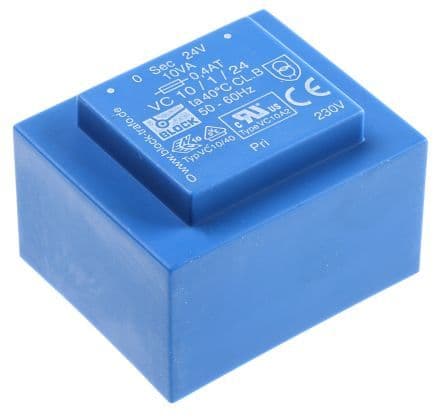

Product Images
