Bourns
3315C-001-006L
Mechanical Encoder Rotary Incremental Slot 0.035N.m Right Angle Quadrature Digital Square Wave 6PPR Through Hole PC Pin
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3315C-001-006L technical specifications.
General
Built in Switch
No
Contact Current Rating
100mA
Contact Plating
Tin, Matte
Detent
No
Encoder Type
Mechanical
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole, Panel, PCB
Number of Channels
3
Number of Positions
6
Orientation
Right Angle
Output Type
Quadrature, Incremental
Overall Depth
17.88mm
Packaging
Rail/Tube
Ratings
IP67
Reach SVHC Compliant
No
Resolution
2b
RoHS Compliant
Yes
Series
3315
Termination
PC Pin
Type
Mechanical
Width
9.53mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3315C-001-006L Datasheet
Download the complete datasheet for Bourns 3315C-001-006L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

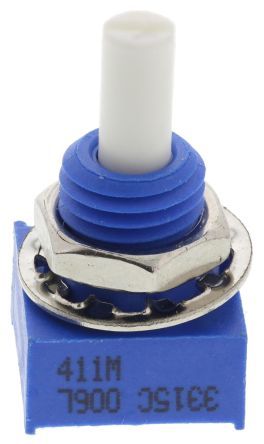

Product Images
