Bourns
ECW0J-B24-AC0006L
2-Channel Mechanical Encoder, Vertical Orientation, 10V Supply, Through Hole Mount
This 2-channel mechanical encoder features a vertical orientation and a nominal supply voltage of 10V. It operates within a temperature range of -40°C to 85°C and is available in a bulk packaging with 45 units per package. The encoder is RoHS compliant and suitable for through hole, panel, and PCB mounting.
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns ECW0J-B24-AC0006L technical specifications.
General
| Built in Switch | No |
| Detent | Yes |
| Encoder Type | Mechanical |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel, PCB |
| Nominal Supply Voltage (DC) | 10V |
| Number of Channels | 2 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 45 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECW |
| Termination | PC Pins |
| Type | Mechanical |
Compliance
| RoHS | Compliant |
Datasheet
Bourns ECW0J-B24-AC0006L Datasheet
Download the complete datasheet for Bourns ECW0J-B24-AC0006L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

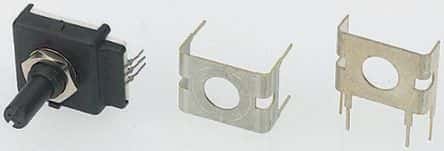

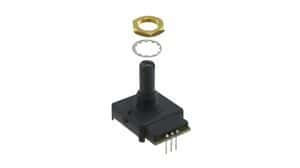

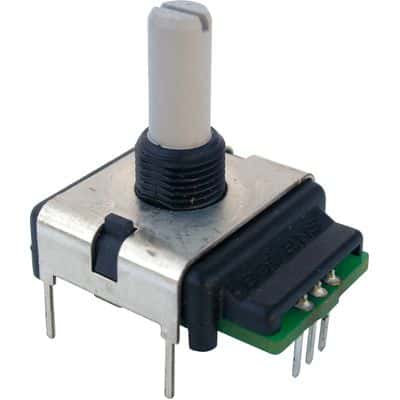

Product Images
