Bourns
ECW1J-C24-AC0024L
Mechanical Encoder Rotary Incremental Flat 0.016N.m Straight Quadrature Digital Square Wave 96PPR Panel Mount PC Pin
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns ECW1J-C24-AC0024L technical specifications.
General
Built in Switch
No
Detent
Yes
Encoder Type
Mechanical
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, Panel, PCB
Nominal Supply Voltage (DC)
10V
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
45
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECW
Termination
PC Pins
Compliance
RoHS
Compliant
Datasheet
Bourns ECW1J-C24-AC0024L Datasheet
Download the complete datasheet for Bourns ECW1J-C24-AC0024L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

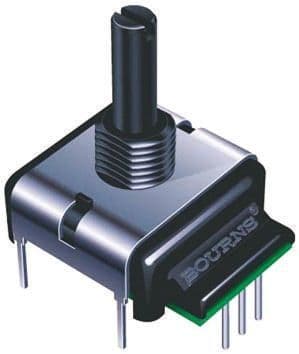

Product Images
