Vertical, through-hole mount optical rotary encoder with 2 channels and 8 positions. Features quadrature, incremental output and a built-in switch. Operates at 5V DC with a supply voltage range of 4.75V to 5.25V. Rated IP54, this lead-free component offers a resolution of 2b and an operating temperature range of -40°C to 70°C. Termination is via PC pin.
PackageAxial
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns EM14A0D-B28-L008S technical specifications.
General
Built in Switch
Yes
Package/Case
Axial
Detent
No
Encoder Type
Optical
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole, Panel, PCB
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Number of Positions
8
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Overall Depth
32.05mm
Package Quantity
25
Packaging
Rail/Tube
Ratings
IP54
Reach SVHC Compliant
No
Resolution
2b
RoHS Compliant
Yes
Series
EM14
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Bourns EM14A0D-B28-L008S Datasheet
Download the complete datasheet for Bourns EM14A0D-B28-L008S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

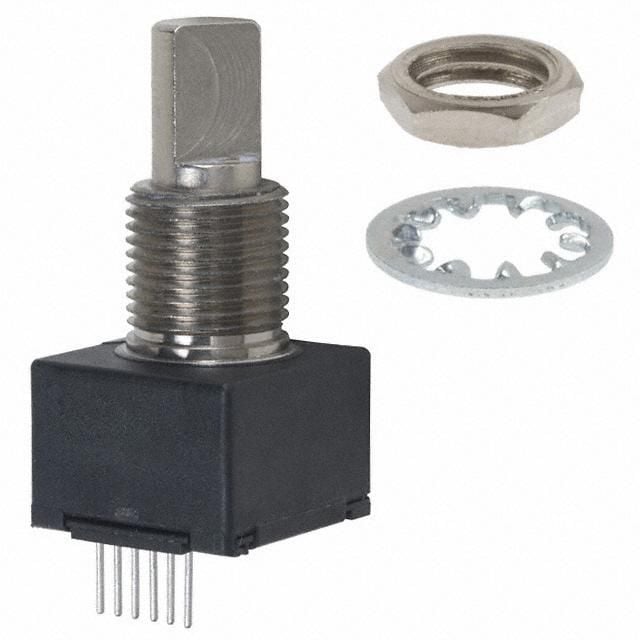

Product Images
