Optical rotary position encoder featuring 2 channels and quadrature, incremental output. Includes a built-in switch and detent functionality. Designed for through-hole, panel, and PCB mounting with axial termination. Operates within a 4.75V to 5.25V supply voltage range, with a nominal of 5V. Rated IP54 and RoHS compliant.
PackageAxial
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns EM14A1D-C24-L008S technical specifications.
General
Built in Switch
Yes
Package/Case
Axial
Detent
Yes
Encoder Type
Optical
Length
14.7mm
Material
PVC
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole, Panel, PCB
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Overall Depth
32.05mm
Package Quantity
25
Packaging
Rail/Tube
Ratings
IP54
Reach SVHC Compliant
No
Resolution
2b
RoHS Compliant
Yes
Series
EM14
Termination
PC Pin
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Bourns EM14A1D-C24-L008S Datasheet
Download the complete datasheet for Bourns EM14A1D-C24-L008S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

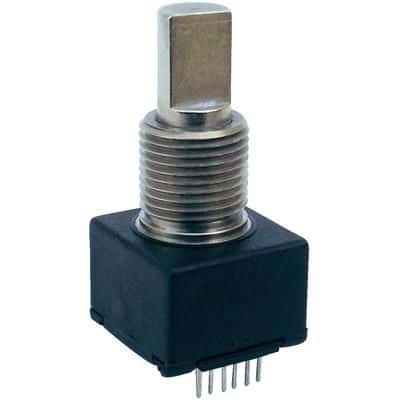

Product Images
