Optical rotary position encoder with 2 channels and 64 positions, offering quadrature and incremental output. Features a vertical orientation, axial package, and through-hole, panel, or PCB mounting. Operates within a 4.75V to 5.25V supply voltage range, with a nominal of 5V. Rated IP54, this RoHS compliant component has a maximum operating temperature of 70°C and a minimum of -40°C.
PackageAxial
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns EM14C0D-E28-L064N technical specifications.
General
| Built in Switch | No |
| Package/Case | Axial |
| Detent | No |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole, Panel, PCB |
| Nominal Supply Voltage (DC) | 5V |
| Number of Channels | 2 |
| Number of Positions | 64 |
| Operating Supply Voltage | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Overall Depth | 32.05mm |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Ratings | IP54 |
| Reach SVHC Compliant | No |
| Resolution | 2b |
| RoHS Compliant | Yes |
| Series | EM14 |
| Termination | PC Pin |
Compliance
| RoHS | Compliant |
Datasheet
Bourns EM14C0D-E28-L064N Datasheet
Download the complete datasheet for Bourns EM14C0D-E28-L064N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

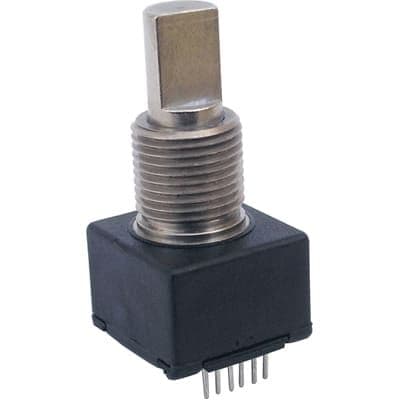

Product Images
