Rotary optical encoder with 16 CPR resolution, featuring 2 quadrature incremental output channels. Designed for through-hole mounting with PC pin termination, this vertical orientation encoder operates within a 4.75V to 5.25V supply voltage range. It includes a built-in switch and offers IP54 ingress protection. Maximum operating temperature is 70°C, with a minimum of -40°C.
PackageAxial
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns EM14R0D-R20-L064S technical specifications.
General
| Built in Switch | Yes |
| Package/Case | Axial |
| Detent | No |
| Encoder Type | Optical |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 2 |
| Operating Supply Voltage | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Overall Depth | 30.57mm |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Ratings | IP54 |
| Reach SVHC Compliant | No |
| Resolution | 2b |
| RoHS Compliant | Yes |
| Series | EM14 |
| Termination | PC Pin |
Compliance
| RoHS | Compliant |
Datasheet
Bourns EM14R0D-R20-L064S Datasheet
Download the complete datasheet for Bourns EM14R0D-R20-L064S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

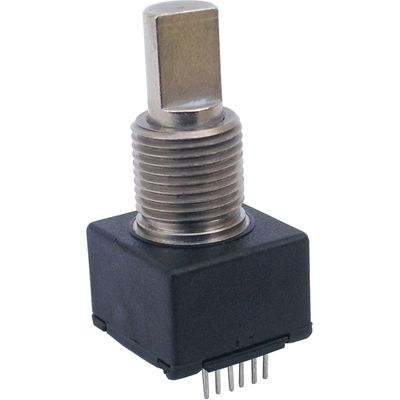

Product Images
