The EM14R1D-R20-L032N optical encoder is a two-channel device with a maximum operating temperature of 70°C and a minimum operating temperature of -40°C. It has a built-in detent and is designed for use with a 5V operating supply voltage. The encoder is available in a RoHS compliant package and is suitable for through-hole, panel, and PCB mounting. It is a part of the EM14 series and is packaged in a rail or tube format with 25 units per package.
PackageAxial
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns EM14R1D-R20-L032N technical specifications.
General
| Built in Switch | No |
| Package/Case | Axial |
| Detent | Yes |
| Encoder Type | Optical |
| Material | PVC |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 2 |
| Operating Supply Voltage | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | EM14 |
| Termination | PC Pin |
Compliance
| RoHS | Compliant |
Datasheet
Bourns EM14R1D-R20-L032N Datasheet
Download the complete datasheet for Bourns EM14R1D-R20-L032N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

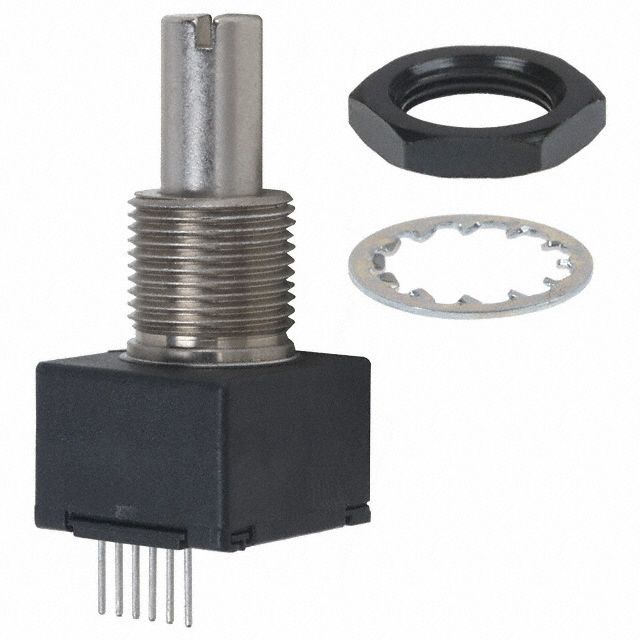

Product Images
