Bourns
EMS22P50-D28-LT6
Magnetic Encoder Rotary Incremental Plain 0.004N.m Straight CW PWM Digital Square Wave Bracket Mount PC Pin 1024PPR Automotive
MountingPanel, PCB, Through Hole, Brackets
Quick Jump:
Technical Specifications
Bourns EMS22P50-D28-LT6 technical specifications.
General
Detent
No
Encoder Type
Magnetic
Material
PVC
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Panel, PCB, Through Hole, Brackets
Nominal Supply Voltage (DC)
5V
Number of Channels
1
Orientation
Vertical
Output Type
Pulse, PWM
Package Quantity
5
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMS22P
Termination
PC Pin
Weight
0.388014oz
Compliance
RoHS
Compliant
Datasheet
Bourns EMS22P50-D28-LT6 Datasheet
Download the complete datasheet for Bourns EMS22P50-D28-LT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

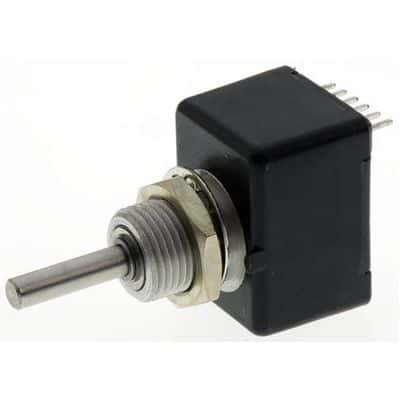

Product Images
