Bourns
EMS22Q51-D28-LT4
Magnetic Encoder Rotary Incremental Plain 0.004N.m Straight Quadrature Digital Square Wave Bracket Mount PC Pin 256PPR Automotive
Current20mA
MountingPanel, PCB, Brackets
Quick Jump:
Technical Specifications
Bourns EMS22Q51-D28-LT4 technical specifications.
General
Depth
13.89mm
Detent
No
Encoder Type
Magnetic
Material
PVC
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Panel, PCB, Brackets
Nominal Supply Voltage (DC)
5V
Number of Channels
3
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
42
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
20mA
Termination
PC Pin
Weight
0.388014oz
Compliance
RoHS
Compliant
Datasheet
Bourns EMS22Q51-D28-LT4 Datasheet
Download the complete datasheet for Bourns EMS22Q51-D28-LT4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

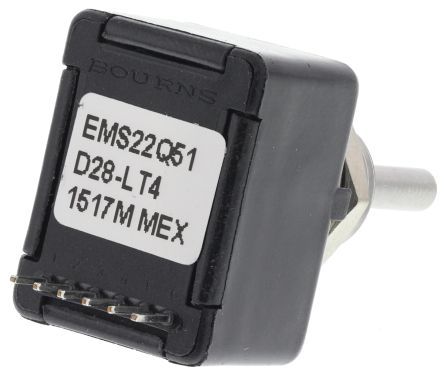

Product Images
