Bourns
ENA1J-B28-L00100L
Optical Encoder Rotary Incremental Plain 0.011N.m Straight Digital Square Wave Bracket Mount PC Pin 100CPR
PackageAxial
MountingThrough Hole, Panel, PCB, Brackets
Quick Jump:
Technical Specifications
Bourns ENA1J-B28-L00100L technical specifications.
General
Built in Switch
No
Package/Case
Axial
Detent
No
Encoder Type
Optical
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole, Panel, PCB, Brackets
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Overall Depth
15.88mm
Package Quantity
42
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Resolution
2b
RoHS Compliant
Yes
Series
EN
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Bourns ENA1J-B28-L00100L Datasheet
Download the complete datasheet for Bourns ENA1J-B28-L00100L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

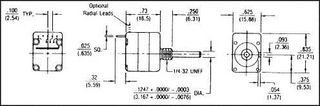

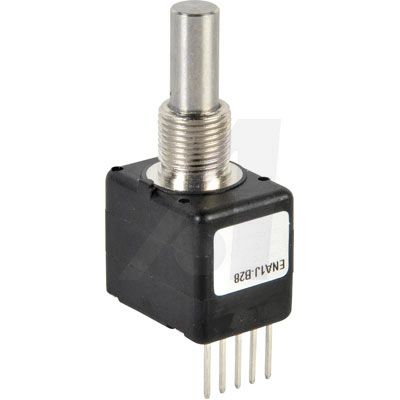

Product Images
