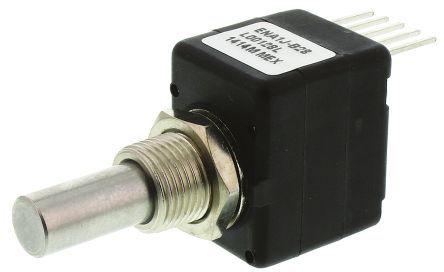

Rotary incremental optical encoder with 128 counts per revolution (CPR) and a 5V DC operating voltage. Features a straight shaft with 0.011 N.m torque, digital square wave output, and two quadrature channels. Designed for bracket mounting with PC pin termination and a width of 15.88mm. Operates across a temperature range of -40°C to 75°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns ENA1J-B28-L00128L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Package/Case | Axial |
| Current Rating | 26mA |
| Detent | No |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 26mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole, Panel, PCB, Brackets |
| Nominal Supply Voltage (DC) | 5V |
| Number of Channels | 2 |
| Number of Positions | 128 |
| Operating Supply Voltage | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 42 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EN |
| Termination | PC Pins |
| Voltage Rating | 5V |
| Voltage Rating (AC) | 5V |
| DC Rated Voltage | 5V |
| Width | 15.88mm |
| RoHS | Compliant |
