Rotary incremental optical encoder with 256 counts per revolution (CPR). Features quadrature output and PC pin termination for digital square wave signals. Operates with a 5V DC supply voltage, ranging from 4.75V to 5.25V, and has a maximum operating temperature of 75°C. Designed for through-hole, panel, PCB, and bracket mounting with a vertical orientation.
PackageAxial
MountingThrough Hole, Panel, PCB, Brackets
Quick Jump:
Technical Specifications
Bourns ENS1J-B28-L00256L technical specifications.
General
Built in Switch
No
Package/Case
Axial
Detent
No
Encoder Type
Optical
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole, Panel, PCB, Brackets
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EN
Termination
PC Pins
DC Rated Voltage
5V
Width
15.88mm
Compliance
RoHS
Compliant
Datasheet
Bourns ENS1J-B28-L00256L Datasheet
Download the complete datasheet for Bourns ENS1J-B28-L00256L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

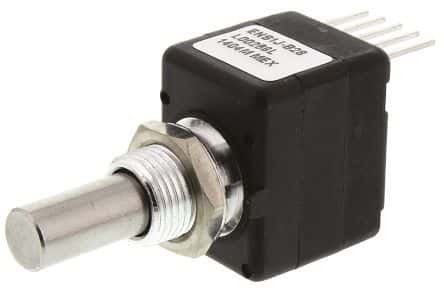

Product Images
