Bourns
PEC09-2325K-N0015
Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT, COMPACT PACKAGE-3
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns PEC09-2325K-N0015 technical specifications.
General
Built in Switch
No
Detent
Yes
Encoder Type
Mechanical
Height
11.4mm
Length
32.1mm
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Mount
Through Hole, Panel, PCB
Number of Channels
2
Orientation
Right Angle
Output Type
Quadrature, Incremental
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PEC09
Termination
PC Pin
Width
9.7mm
Compliance
RoHS
Compliant
Datasheet
Bourns PEC09-2325K-N0015 Datasheet
Download the complete datasheet for Bourns PEC09-2325K-N0015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

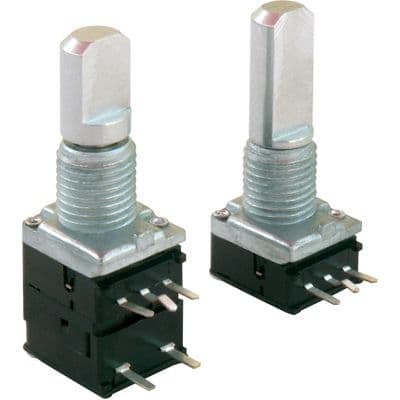

Product Images
