Bourns
PEC11L-4220F-S0015
Mechanical Encoder Rotary Incremental Flat 0.015N.m Straight Quadrature Digital Square Wave 15PPR Through Hole PC Pin
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns PEC11L-4220F-S0015 technical specifications.
General
Built in Switch
Yes
Detent
Yes
Encoder Type
Mechanical
Height
12mm
Length
24.5mm
Max Operating Temperature
80°C
Min Operating Temperature
-25°C
Mount
Through Hole, Panel, PCB
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PEC11
Termination
PC Pin
Width
11.8mm
Compliance
RoHS
Compliant
Datasheet
Bourns PEC11L-4220F-S0015 Datasheet
Download the complete datasheet for Bourns PEC11L-4220F-S0015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

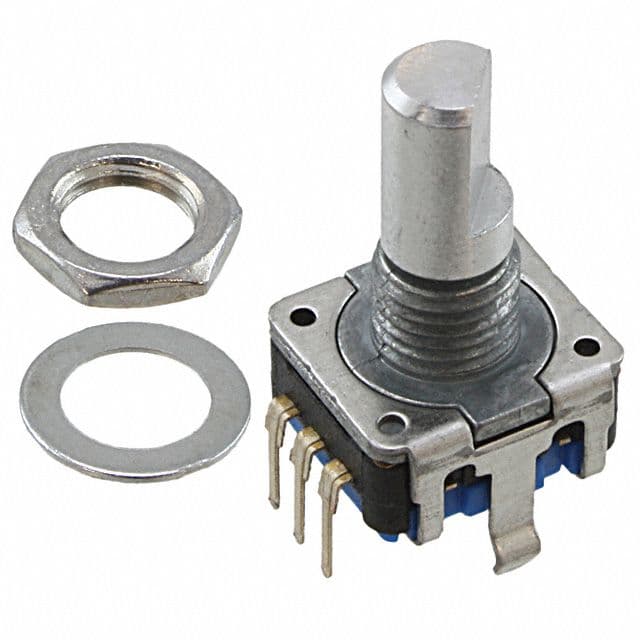

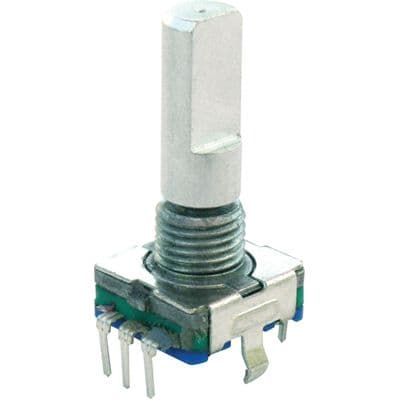

Product Images
