Bourns
PEC11R-4015F-N0024
Mechanical Encoder Rotary Incremental Flat 0.007N.m Straight Quadrature Digital Square Wave 24PPR Through Hole PC Pin
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns PEC11R-4015F-N0024 technical specifications.
General
Built in Switch
No
Detent
No
Encoder Type
Mechanical
Height
13.4mm
Length
21.5mm
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Through Hole, Panel, PCB
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
75
Packaging
Bulk
RoHS Compliant
Yes
Series
PEC11R
Termination
PC Pin
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns PEC11R-4015F-N0024 Datasheet
Download the complete datasheet for Bourns PEC11R-4015F-N0024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

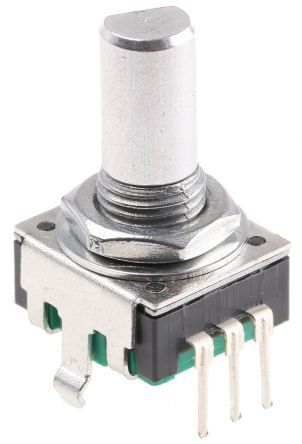

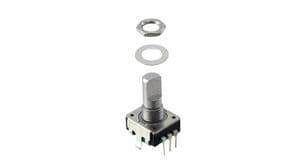

Product Images
