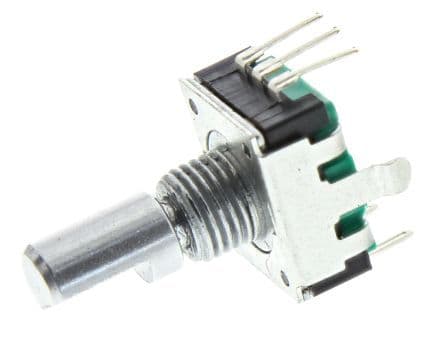

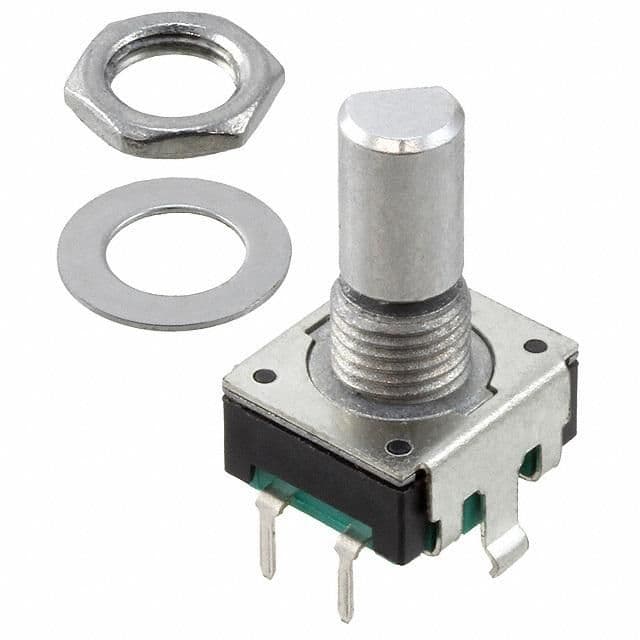

Vertical mechanical rotary encoder with 2 quadrature incremental output channels, generating digital square wave signals at 18 pulses per revolution. Features a built-in switch and detent for tactile feedback, with a torque rating of 0.007 N.m. Designed for through-hole mounting on PCBs and panels, with PC pin termination. Operating temperature range from -30°C to 70°C, with a compact form factor measuring 12.5mm width, 13.4mm height, and 21.5mm length. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PEC11R-4115F-S0018 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Mechanical |
| Height | 13.4mm |
| Length | 21.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 2 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 75 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PEC11R |
| Termination | PC Pin |
| Width | 12.5mm |
| RoHS | Compliant |
