Bourns

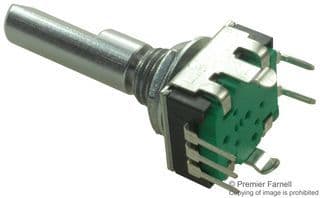

PEC11R-4120F-S0018
Mechanical Encoder Rotary Incremental Flat 0.007N.m Straight Quadrature Digital Square Wave 18PPR Through Hole PC Pin
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns PEC11R-4120F-S0018 technical specifications.
General
Built in Switch
Yes
Detent
Yes
Encoder Type
Mechanical
Height
13.4mm
Length
26.5mm
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Through Hole, Panel, PCB
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
75
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PEC11R
Termination
PC Pin
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns PEC11R-4120F-S0018 Datasheet
Download the complete datasheet for Bourns PEC11R-4120F-S0018 to view detailed technical specifications.
