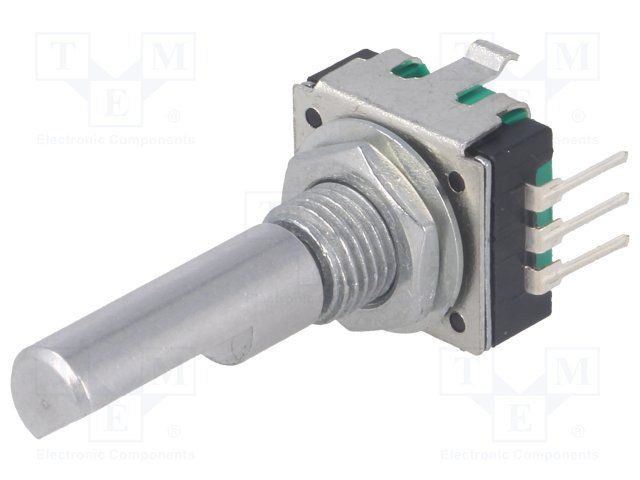

The PEC11R-4125F-S0018 is a 2-channel mechanical encoder with built-in switch and detent. It has a height of 13.4mm, length of 31.5mm, and width of 12.5mm. The encoder operates within a temperature range of -30°C to 70°C and is available in bulk packaging with 75 units per package. It is RoHS compliant and suitable for through hole, panel, and PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PEC11R-4125F-S0018 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns PEC11R-4125F-S0018 technical specifications.
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Mechanical |
| Height | 13.4mm |
| Length | 31.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 2 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 75 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PEC11R |
| Termination | PC Pin |
| Type | Mechanical |
| Width | 12.5mm |
| RoHS | Compliant |
