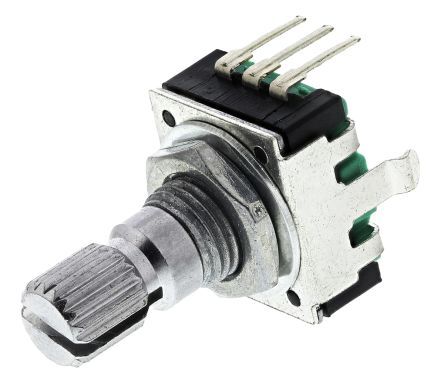

This 2-channel mechanical absolute encoder features a DC rated voltage of 5V and is designed for through hole, panel, and PCB mounting. The encoder has a height of 13.4mm, length of 21.5mm, and width of 12.5mm. It operates within a temperature range of -30°C to 70°C and is compliant with RoHS regulations. The encoder is available in bulk packaging with 75 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PEC11R-4215K-N0024 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Current Rating | 10mA |
| Detent | Yes |
| Encoder Type | Mechanical |
| Height | 13.4mm |
| Length | 21.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 2 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 75 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | PEC11R |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Width | 12.5mm |
| RoHS | Compliant |
