Vertical mount, surface mount optical encoder with quadrature, incremental output. Features a built-in switch and detent for tactile feedback. Operates within a -40°C to 70°C temperature range with a 5V supply voltage. Terminated for SMD/SMT applications, supplied in tray packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns PEC11S-9213K-S0015 technical specifications.
General
Built in Switch
Yes
Detent
Yes
Encoder Type
Mechanical
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
100
Packaging
Tray
RoHS Compliant
Yes
Series
PEC11S
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Bourns PEC11S-9213K-S0015 Datasheet
Download the complete datasheet for Bourns PEC11S-9213K-S0015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

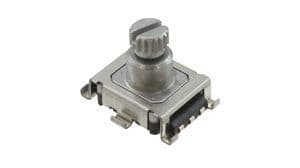

Product Images
