Technical Specifications
Bourns PEC12-4120F-S0024 technical specifications.
General
Built in Switch
Yes
Detent
Yes
Encoder Type
Mechanical
Height
13.2mm
Length
26mm
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Through Hole, PCB
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
75
RoHS Compliant
Yes
Series
PEC12
Termination
PC Pin
Type
Mechanical
Width
12.4mm
Compliance
RoHS
Compliant
Datasheet
Bourns PEC12-4120F-S0024 Datasheet
Download the complete datasheet for Bourns PEC12-4120F-S0024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

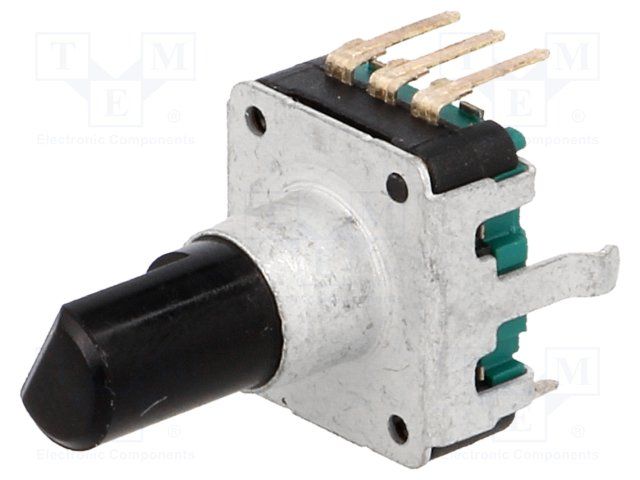

Product Images
