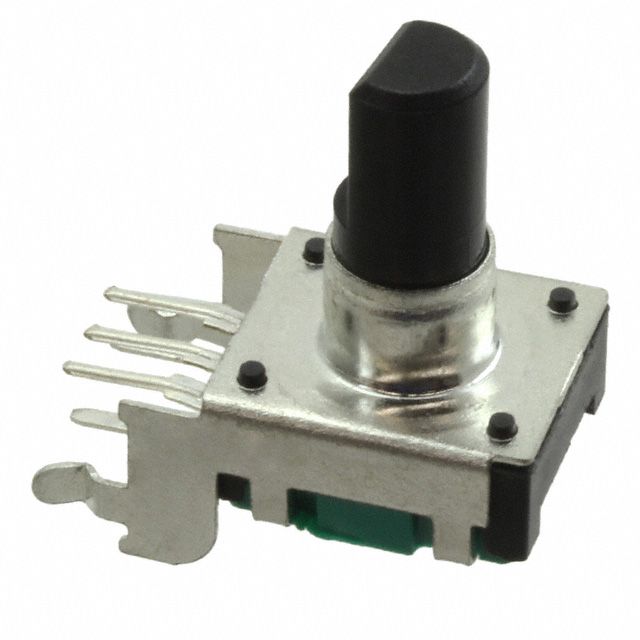

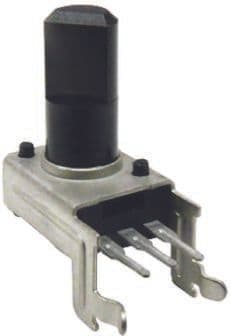

The PEC12R-2120F-S0012 is a mechanical encoder from Bourns with built-in switch and detent. It features a right-angle orientation and is available in bulk packaging. The encoder operates within a temperature range of -30°C to 70°C and is compliant with RoHS regulations. It measures 26mm in length, 13.4mm in height, and 12.5mm in width, making it suitable for through-hole mounting on a PCB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PEC12R-2120F-S0012 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns PEC12R-2120F-S0012 technical specifications.
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Mechanical |
| Height | 13.4mm |
| Length | 26mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, PCB |
| Number of Channels | 2 |
| Orientation | Right Angle |
| Output Type | Quadrature, Incremental |
| Package Quantity | 75 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | PEC12R |
| Termination | PC Pin |
| Width | 12.5mm |
| RoHS | Compliant |
