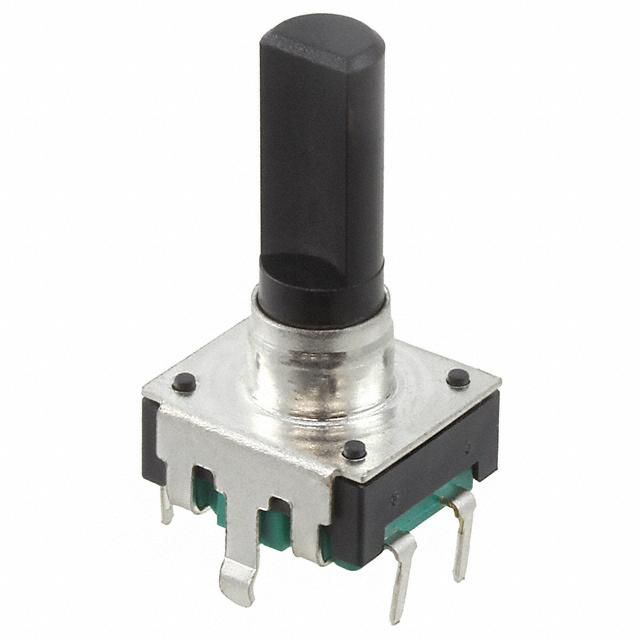

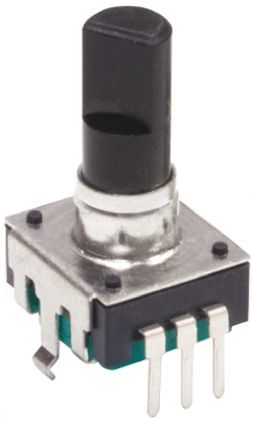

Bourns
PEC12R-4025F-S0024
Mechanical Encoder Rotary Incremental Flat 0.007N.m Straight Quadrature Digital Square Wave 24PPR Through Hole PC Pin
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns PEC12R-4025F-S0024 technical specifications.
General
Built in Switch
Yes
Detent
No
Encoder Type
Mechanical
Height
13.4mm
Length
13.4mm
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Through Hole, PCB
Nominal Supply Voltage (DC)
5V
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
75
Packaging
Bulk
RoHS Compliant
Yes
Series
PEC12R
Termination
PC Pin
Width
12.5mm
Compliance
RoHS
Compliant
