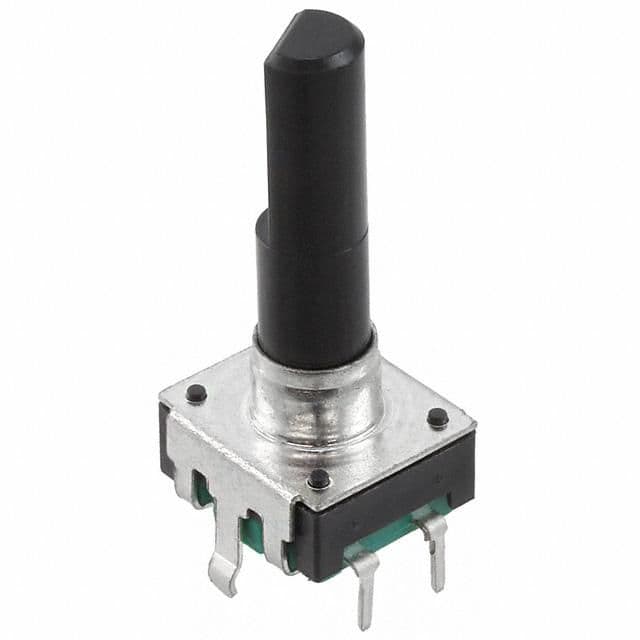

The PEC12R-4130F-S0012 mechanical encoder from Bourns features a built-in switch and detent, with a maximum operating temperature of 70°C and a minimum operating temperature of -30°C. It is available in a through-hole package with a PCB mount, measuring 13.4mm in height, 12.5mm in width, and 13.4mm in length. The encoder has two channels and provides a quadrature, incremental output type. It is RoHS compliant and packaged in bulk quantities of 75 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PEC12R-4130F-S0012 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns PEC12R-4130F-S0012 technical specifications.
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Mechanical |
| Height | 13.4mm |
| Length | 13.4mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, PCB |
| Number of Channels | 2 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 75 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | PEC12R |
| Termination | PC Pin |
| Width | 12.5mm |
| RoHS | Compliant |
